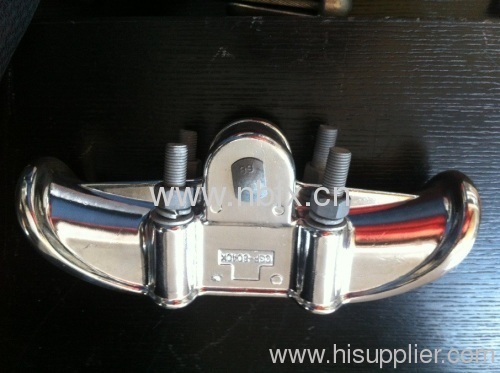

ALUMINIUM ALLOY SUSPENSION CLAMP FOR HIGH VOLTAGE

Price:	1.0~20.0 USD
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: CGF-6C

Production Capacity: 10000/MONTH

Delivery Date: 30

MATERIAL: ALUMINIUM ALLOY

STEEL ACCESSORY: HOT DIP GALVANIZED

VOLTAGE: 500KV

Means of Transport: Ocean

Packing: CARTON

FAIL LOAD: 70KN

SURFACE: SMOOTH

CONDUCTOR RANGE: 34-46MM

The suspension clamp is used for binding aluminum belts or wire protective bars outside the conducting wires when laying aluminum strand cable

product name ALUMINIUM ALLOY SUSPENSION CLAMP

aluminium alloy suspension clamp sutibale for conductor 12.4-17mm .

The clamp body and keepers are aluminum alloy.

Cotter-pin is stainless steel.

The other parts are steel and hot-dip galvanized.

Detailed Specifications:

Type	Applicable Conductor	H (mm)	C(mm)	M(mm)	R(mm)	L(mm)	Rated Load (kN)
CGH-3	12.7-18.5	62	22	16	10.5	180	50
CGH-4	17.8-22.0	62	27	16	13.0	203	50
CGH-4G	17.8-25.0	67	29	16	13.5	223	50
CGH-6	23.0-35.0	68	38	16	18.0	216	60
CGH-8	30.0-42.5	85	47	16	23.0	245	82

Aluminium alloy suspension clamps(hand-down type)

Type	Applicable strand diameter(mm)	Dimensions(mm)					Failure load (kn)
Type	Applicable strand diameter(mm)	L	H	C	R	D	Failure load (kn)
CGF-3C	13-20	200	58	20	10	12	40
CGF-4C	18-26	250	62	28	13	16	40
CGF-5C	23-34	300	65	34	17	16	60
CGF-6C	34-36	320	67	46	23	16	60

Aluminium alloy suspension clamps(Envelop type)

Type	Applicable range of stranddiameter(mm)	Dimensions(mm)				KN	weight(kg)
Type	Applicable range of stranddiameter(mm)	C	H	R	C	KN	weight(kg)
CGH-3T	12.4-17.0	220	65	9.5	22	40	1.5
CGH-4T	19.0-21.5	250	70	12	27	40	2.2
CGH-5T	24.2-33.0	300	85	17	33	60	2.8
CGH-6T	34.0-45.0	300	90	23	36	60	3.5
