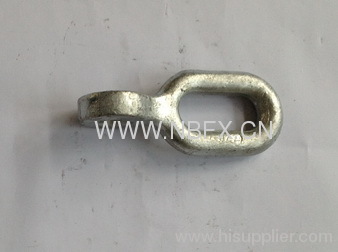

ZH-12 TYPE POWER LINE LINK 120KN

Price: 5.0 USD
Payment Terms: T/T,L/C,WU
Place of Origin: Zhejiang, China (Mainland)
inquire skype
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: ZH-12
Production Capacity: 50000/MONTH
Delivery Date: ACCORDING TO THE TY
FAILURE LOAD: 100KN
manufacturing technique: forging
Means of Transport: Ocean
Packing: bag, carton., any other one...
SURFACE TREATMENT: HOT DIP GALVANIZED
MATERIAL: STEEL

Eye Chain Links
1.High quality,reasonable price
2.Easy install,fast delivery
3.ISO9001:2008, SGS


Eye Chain Links ZH-7

Extension
link fitting are used to link clamps to insulator,or to link insulator and ground wire clamp to tower arms or substation structures.link fitting have special type and common type in accordanle with mounting condition.the special type includes the ball-eye and soceket-clevis linking with insulator.the common type is usually pin connected tape. they have different grades in according to the load and are exchangeable for the same grade.
The meaning of letter Arabic figures in the catalog are shown as follow.
Q-ball eye P-plane parallel W-socket clevis S-double U-U type L-yoke plate, tension rod.
rhomb
Z-90 agree angle Y-extension B-plate F-square J-strengthen, grading ring T-adjustmentable.
Dimensions of ball and socket for the special type are in accordance with "dimension of balland socket coupling of string insulator units" IEC-120 and "dimension of hanging insulator units forhigh ovltage transminssion line" GB4056-83.
Hot dip galvanized steel
Model
Dimensions(mm)
Failing Load (KN)
Weight
(KG)
C
h
H
b
B
Φ
ZH-7
24
57
95
16
16
20
70
0.5
ZH-10
24
57
100
16
18
20
100
1.1
ZH-12
24
65
115
16
18
24
120
1.2
ZH-16
26
75
135
22
22
26
160
1.8

rated failure load(kn):70/100/120
Usage:
It's used to link clamps to insulator,or to link insulator and ground wire clamp to
towerarms or substation structures.
we are the manufcturer with ten years experience.
It is used to link clamps to insulator, or to link insulator and ground wire clamp to tower or sujection stucture. It has special type inaccordance with mounting condition.
There will no sharp edges, and corners rounded. All items will be clean rust free, smooth and uniform throughout and will also be free from burrs.
I will help you with my best effort,expect for Cooperation!
ZH-12 TYPE POWER LINE LINK
