  • L-1040 POWER LINE YOKE PLATE
  • L-1040 POWER LINE YOKE PLATE
  • L-1040 POWER LINE YOKE PLATE
  • L-1040 POWER LINE YOKE PLATE

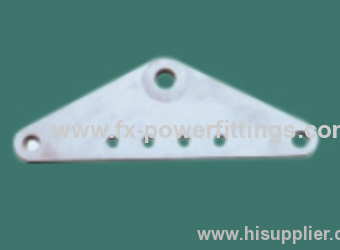

Enlarge L-1040 POWER LINE YOKE PLATE

L-1040 POWER LINE YOKE PLATE

Price: 10.0 USD
Payment Terms: T/T,L/C,WU
Place of Origin: Zhejiang, China (Mainland)
inquire skype
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: L-1040
Production Capacity: 50000/MONTH
Delivery Date: ACCORDING TO THE QTY
surface treatment: hot dip galvnized
WEIGHT: 4.5KG
PACKING: BAG
Means of Transport: Ocean
Packing: BAG
material: steel
BRAND: FX
FAILURE LOAD: 10KN
STRANDARD: IEC 16

Power Fitting
Yoke Plates;
(1) Material: hot-dip galvanized steel;
(2) Type: L-1040~L6050;

This yoke plate is made of Hot-dip galvanized steel. The UTS is from 70kN to 640kN, for transmission line.
This yoke plate is made of Hot-dip galvanized steel. The UTS is from 70kN to 640kN, for transmission line.
Yoke Plates
(1) Hot-dip galvanized steel.
Catalog No.Dimension(mm)Rated Failure Load (kN)Weight (kg)
bb1hφ1φ2L
L-102416167020184001004.43
L-124016167024184001204.66
L-1640161810026204001605.80
L-2140162610030204002006.90
L-2052162610030265202008.00
L-20551626200302455020011.80
L-2540163011033244002509.00
L-30401832110392640030010.00
L-42552438250453055042024.40
L-50403038110453340050014.80
L-60453242200513945060025.50
L-60503242250513950060023.30


pole line hardware triangular yoke plate,triangular yoke plate
1.Material:Q235 galvanized steel
2.professional manufacturer
3.high quality
4.low price
Specfication:
Catalog No.
Dimensions(mm)
rated failure load(KN)
Weight(KG)
L
I
H
h
φ 1
φ2
b
SLD-12
200
150
145
90
24
18
16
120
4.5
SLD-16
204
150
150
90
26
20
18
160
5.0
SLD-21
226
170
152
90
29
24
18
210
5.3
SLD-25
240
180
160
90
32
26
20
250
6.4
SLD-30
246
180
167
90
38
26
20
300
8.2
SLD-50
272
200
173
90
45
32
26
500
9.4
