Fengxin Electrical Science&Technology Co.,Ltd
|
| Price: | 5.0 USD |
| Payment Terms: | T/T,L/C,WU |
| Place of Origin: | Zhejiang, China (Mainland) |
|
|
| Add to Basket | Add to My Favorites |
| HiSupplier Escrow |

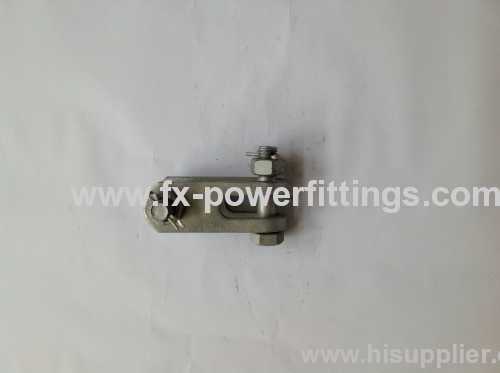

Power Fitting Clevis
The closed-pin is stainless steel work, the other parts are hot-dip galvanized steel.
| Type | Dimensions (mm) | Failure load (kN) | Weight (kg) | ||||
| c | b | M | d | h | |||
| ZS-7 | 18 | 16 | 16 | 20 | 80 | 70 | 0.6 |
| ZS-10 | 20 | 18 | 18 | 20 | 80 | 100 | 0.9 |
| ZS-16 | 26 | 26 | 24 | 26 | 100 | 160 | 1.9 |
| ZS-665 | 20 | 22 | 16 | 20 | 65 | 70 | 0.7 |
U-7 shackles
1.we are factory
2.High quality and competitve price
3.The cotter pin are stainless steel
4.ISO9001:2000
U-7 shackles
1.we are factory
2.High quality and competitve price
3.The cotter pin are stainless steel,the other p1.we are factory
2.High quality and competitve price
3.The cotter pin are stainless steel,the other partshot-dip galvanized steel
4.FOB Ningbo
Catalog No | Dimensions(mm) | Rated Failure Load≥(kN) | Weight | |||||
C | M | d | h | R | r | |||
U-7 | 20 | 16 | 16 | 80 | 10 | 22 | 70 | 0.44 |
U-10 | 22 | 18 | 18 | 85 | 11 | 24 | 100 | 0.54 |
U-12 | 24 | 22 | 20 | 90 | 12 | 30 | 120 | 0.96 |
U-16 | 26 | 24 | 22 | 95 | 13 | 32 | 160 | 1.47 |
U-20 | 30 | 27 | 24 | 100 | 15 | 36 | 200 | 2.20 |
U-25 | 34 | 30 | 26 | 110 | 17 | 40 | 250 | 2.79 |
U-30 | 38 | 36 | 30 | 130 | 19 | 46 | 300 | 3.75 |
U-40 | 42 | 42 | 36 | 150 | 21 | 50 | 400 | 6.80 |
Chain Link PH-7
Hot dip galvanized steel
Model | Dimensions(mm) | Ultimate strength(kN) | Weight(kg) | ||
C | d | L | |||
PH-7 | 20 | 16 | 80 | 70 | 0.4 |
PH-10 | 22 | 18 | 100 | 100 | 0.6 |
PH-10L | 22 | 18 | 350 | 100 | 1.7 |
PH-12 | 24 | 20 | 120 | 120 | 0.9 |
PH-16 | 26 | 22 | 140 | 160 | 1.2 |
PH-20 | 30 | 24 | 160 | 200 | 1.6 |
PH-25 | 34 | 26 | 160 | 250 | 2.0 |
Fengxin Electrical Science&Technology Co.,Ltd [China (Mainland)]
Business Type:Manufacturer
City: Ningbo
Province/State: Zhejiang
Country/Region: China (Mainland)
|
