ZH-7 POWER LINE TYPE LINK from China manufacturer - Fengxin Electrical Science&Technology Co.,Ltd

Price:	10.0 USD
Payment Terms:	T/T,L/C,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: ZH-7

Production Capacity: 50000/MONTH

Delivery Date: ACCORDING TO THE QTY

surface treatment: hot dip galvnized

WEIGHT: 0.9KG

PACKING: BAG

SUITABLE FOR INSULATOR: XP-7

Means of Transport: Ocean

Packing: BAG

material: steel

BRAND: FX

FAILURE LOAD: 70KN

STRANDARD: IEC 16

Eye Chain Links
1.High quality,reasonable price
2.Easy install,fast delivery
3.ISO9001:2008, SGS

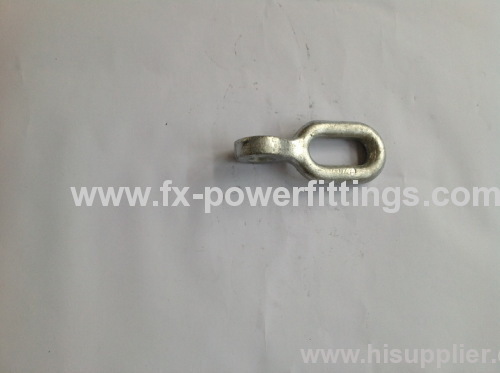

Eye Chain Links ZH-7

Hot dip galvanized steel

Model	Dimensions(mm)						Failing Load (KN)	Weight (KG)
Model	C	h	H	b	B	Φ	Failing Load (KN)	Weight (KG)
ZH-7	24	57	95	16	16	20	70	0.5
ZH-7	24	57	100	16	18	20	100	1.1
ZH-7	24	65	115	16	18	24	120	1.2
ZH-7	26	75	135	22	22	26	160	1.8

Chain Link PH-7

Hot dip galvanized steel

Model	Dimensions(mm)			Ultimate strength(kN)	Weight(kg)
Model	C	d	L	Ultimate strength(kN)	Weight(kg)
PH-7	20	16	80	70	0.4
PH-10	22	18	100	100	0.6
PH-10L	22	18	350	100	1.7
PH-12	24	20	120	120	0.9
PH-16	26	22	140	160	1.2
PH-20	30	24	160	200	1.6
PH-25	34	26	160	250	2.0

U-7 shackles

1.we are factory
2.High quality and competitve price
3.The cotter pin are stainless steel,the other p1.we are factory
2.High quality and competitve price
3.The cotter pin are stainless steel,the other partshot-dip galvanized steel

4.FOB Ningbo

Catalog No	Dimensions(mm)						Rated Failure Load≥(kN)	Weight
Catalog No	C	M	d	h	R	r	Rated Failure Load≥(kN)	Weight
U-7	20	16	16	80	10	22	70	0.44
U-10	22	18	18	85	11	24	100	0.54
U-12	24	22	20	90	12	30	120	0.96
U-16	26	24	22	95	13	32	160	1.47
U-20	30	27	24	100	15	36	200	2.20
U-25	34	30	26	110	17	40	250	2.79
U-30	38	36	30	130	19	46	300	3.75
U-40	42	42	36	150	21	50	400	6.80
